MC4 Connector Twin Pack
MC4 Connector Twin Pack:

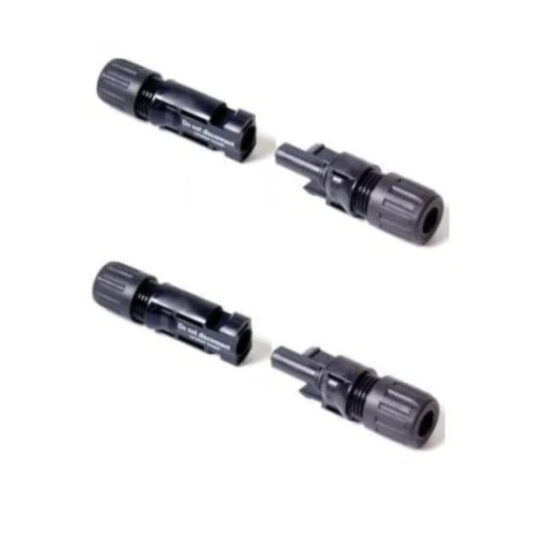

A pack of 2x Male and 2x Female cable couplers
Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
Description
A pack of 2x Male and 2x Female cable couplers
(including insulating part)
Snap-in lock
Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
Tried and tested plug connectors, 14 years of experience in the field
Suitable for assembly with cross-sections of 4 and 6 mm²
Rated current: 39 A (for 4 and 6mm2 cable)
Rated voltage: 1000 V
IP Rating: IP65 / IP68 when mated (1h / 1min)
Cross section: 4 – 6 mm²
Outer diameter cable (dA): 5,5 – 9 mm
Please use correct MC4 approved tools to crimp these connectors on to bare cables.
